OpenClaw runs your agent inside a gateway; BenchGen connects to it through the plugin package @benchgen/benchgen-openclaw. You need a gateway 2026.7.2 or newer and plugin 0.3.0 or newer (older combinations only trace: 2026.7.1 lacks the chat bridge hook, plugin 0.2.x cannot chat), and an agent record in BenchGen: if you have none yet, create one under My Agents → Create New Agent. Everything you will paste, the key pair, the endpoint and the chat relay URL, is on that agent’s Observability card on its Overview tab.

Ways to connect

Three ways to put the configuration in place; pick by what kind of access you have to the gateway.

A. Command line

1

Install the plugin

If the gateway is already running, restart it after the install.
2

Configure the plugin

The wizard prompts for the public key, secret key and endpoint, verifies that the keys reach BenchGen, asks whether BenchGen may chat with the agent (default yes) and for the chat relay URL (paste BENCHGEN_CHAT_URL from the card; Enter keeps the built-in default, which is the production relay), enables the plugin and writes plugin-scoped config to plugins.entries.benchgen.
3

Restart the gateway and check status

How you restart depends on the hosting: docker restart <container> for a Docker gateway, or the restart control in your hosting panel. Then:
Enabled: yes and Status: loaded mean the plugin is running. Now verify.

B. Setup prompt

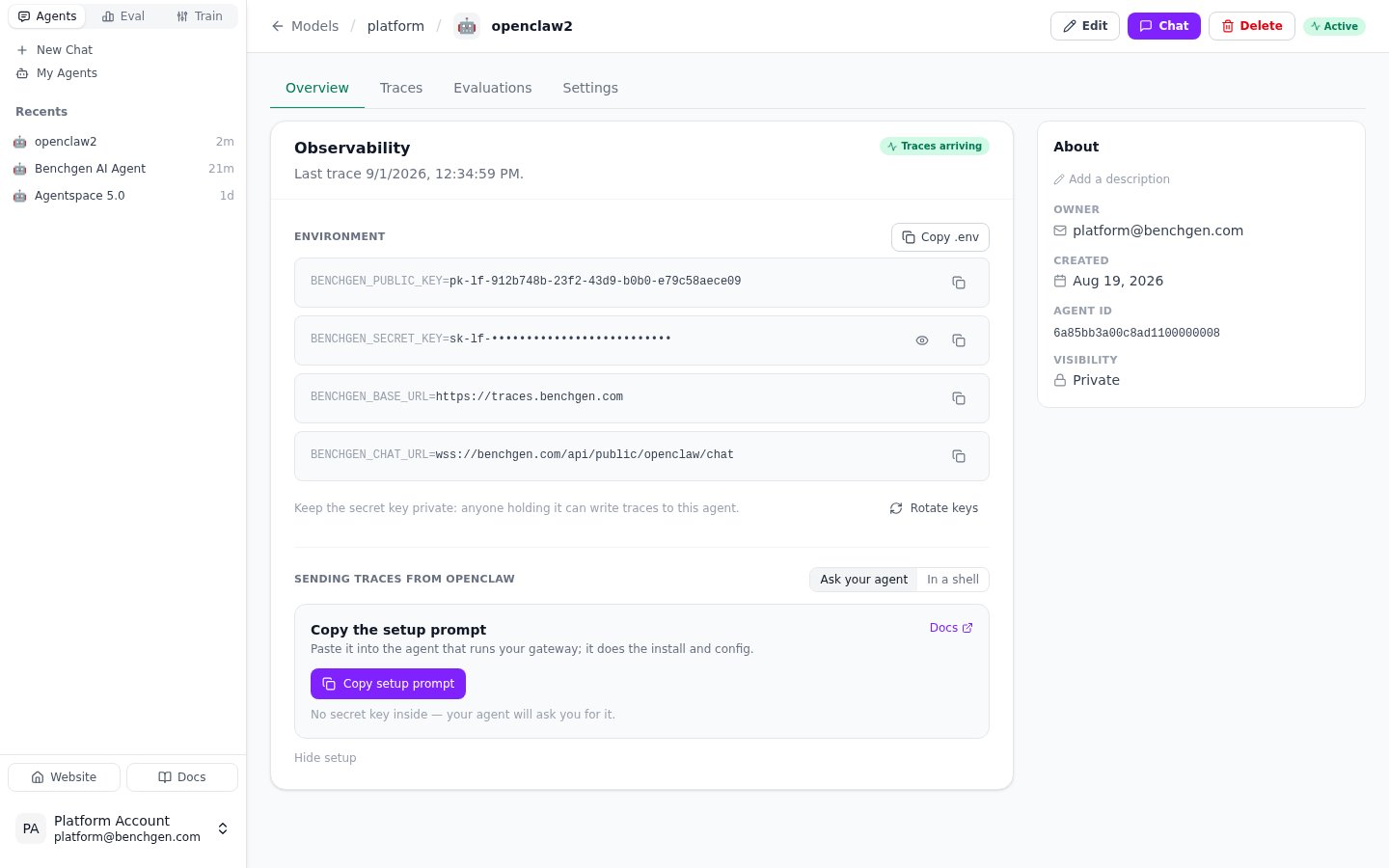

The Observability card with the agent's key pair, trace status and the Copy setup prompt button

The Observability card: the agent's key pair, its trace status, and under Sending traces from OpenClaw the Copy setup prompt button

On the Observability card, open the Ask your agent tab, click Copy setup prompt, and paste it into a session with the agent that runs your gateway. The prompt already contains your public key, endpoint and chat relay URL; it tells the agent to install the plugin, write the config, and restart the gateway, so the agent’s tool profile has to allow shell execution.
The secret key is not in the prompt, deliberately. A prompt goes into chat history and usually into a model provider’s logs. The agent will ask for it separately.
Then check the result yourself at Verify. An agent reporting success is not the same as a trace arriving.
Your copy carries your agent’s real public key in place of the placeholder; the URLs below are the production values, and your copy has the ones for your BenchGen environment.

C. Manual JSON

Use this when you need explicit checked-in or templated plugin configuration, or when your only access is the Control UI’s raw config editor (Settings → Advanced → Settings → Raw). Add this to your OpenClaw config, at the root level. The URLs are the production values; on another BenchGen environment use the BENCHGEN_BASE_URL and BENCHGEN_CHAT_URL from the Observability card. The key pair is your agent’s own, also on the card:
Both enabled flags have to be true: the outer one loads the plugin, the inner one turns on streaming. benchgen is the plugin’s manifest id, not its npm package name. chat.url is the card’s BENCHGEN_CHAT_URL; leave it out only if the card’s value equals the plugin’s built-in default (the production relay). The environment fallbacks BENCHGEN_PUBLIC_KEY, BENCHGEN_SECRET_KEY, BENCHGEN_BASE_URL and BENCHGEN_CHAT_URL are read when the matching config key is absent, and BENCHGEN_CHAT_ENABLED=false switches chat off the same way. Setting all four on the container skips the wizard entirely. Restart the gateway after editing.
Back up openclaw.json first. OpenClaw refuses to start on an invalid config: an unknown plugin id or a wrong type stops the gateway, and the Control UI goes down with it.

Verify

Every time the plugin starts with valid configuration it sends one trace of its own:
Look for it in the Logs tab of the Control UI, and on your agent’s Traces tab as benchgen.plugin.connected, tagged benchgen-setup. The Observability card flips from Waiting for first trace to Traces arriving when it lands, with no page reload. With chat enabled the gateway log also shows the relay coming up (relay connected), and within a few seconds the agent’s Settings → Runtime card reads connected through the BenchGen OpenClaw plugin with an Open chat button.

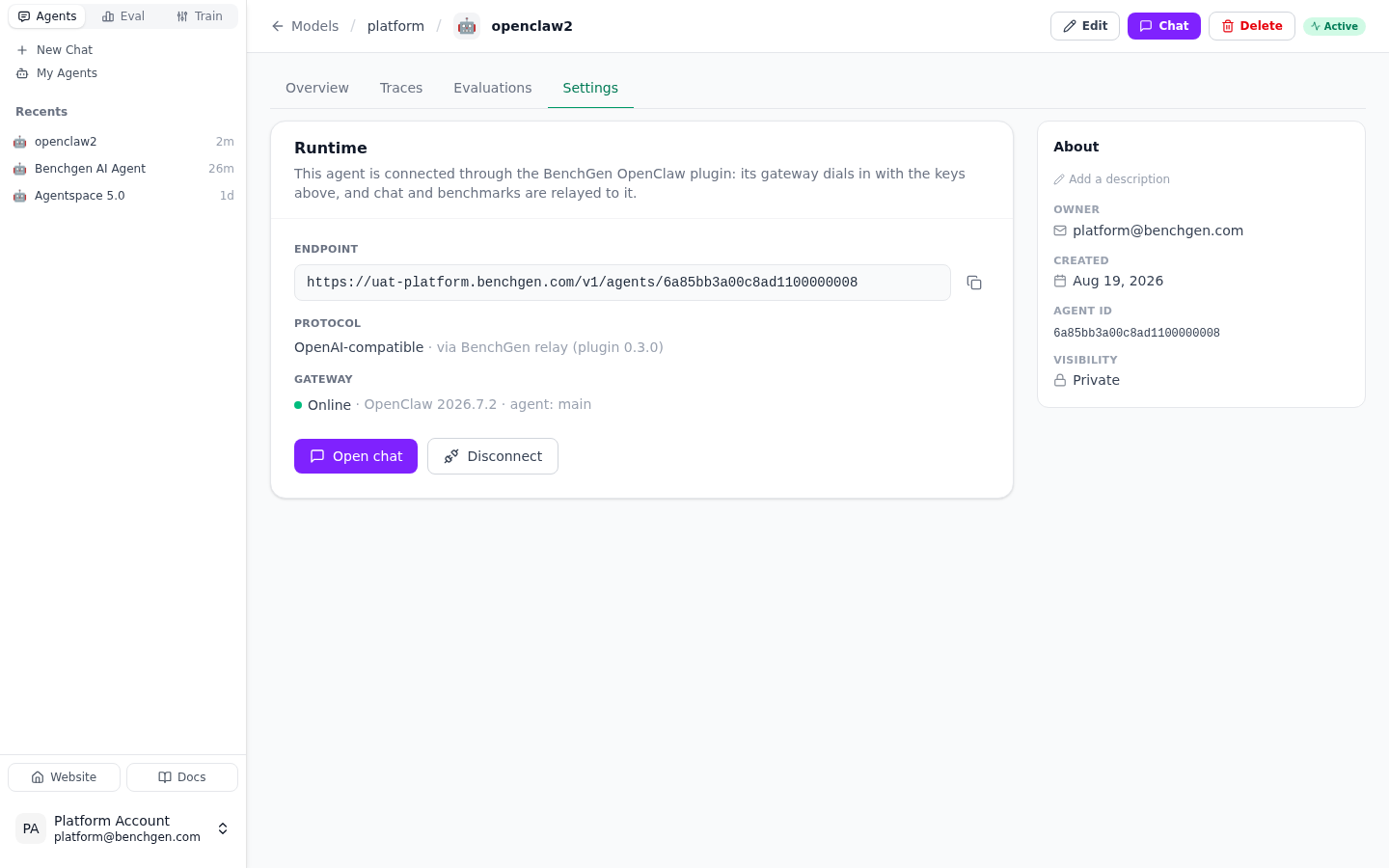

The Runtime card showing the endpoint, protocol via BenchGen relay, gateway online and the Open chat button

The Runtime card once the plugin has dialled in: endpoint, protocol via BenchGen relay, gateway online, Open chat

That card polls on its own; if it still shows OpenClaw plugin connected, Connecting it for chat… after a minute, see Troubleshooting. Wrong credentials fail loudly rather than silently:
Streaming stays subscribed either way; a rejected handshake never stops the plugin. The relay, on the other hand, refuses unknown keys (the gateway log shows the socket closing with 4401) and retries with backoff until the keys are right.
On OpenClaw 2026.7.2 a config edit hot-reloads: the logs show config change detected followed by a fresh handshake, no restart. Only new plugin code needs a restart.
These handshake traces accumulate, since a config edit counts as a start. Filter the Traces tab by tag benchgen-setup to isolate them, or to scan past them. Then send your agent a few ordinary messages. Those produce the real traces.

First traces

The Traces tab is the agent’s own trace store, read with the keys on the Observability card. One project per agent, so nothing from other agents is mixed in. One trace per message the agent handles. After the handshake, send the agent a few ordinary messages and they appear here within seconds; that is what a freshly connected agent should look like:

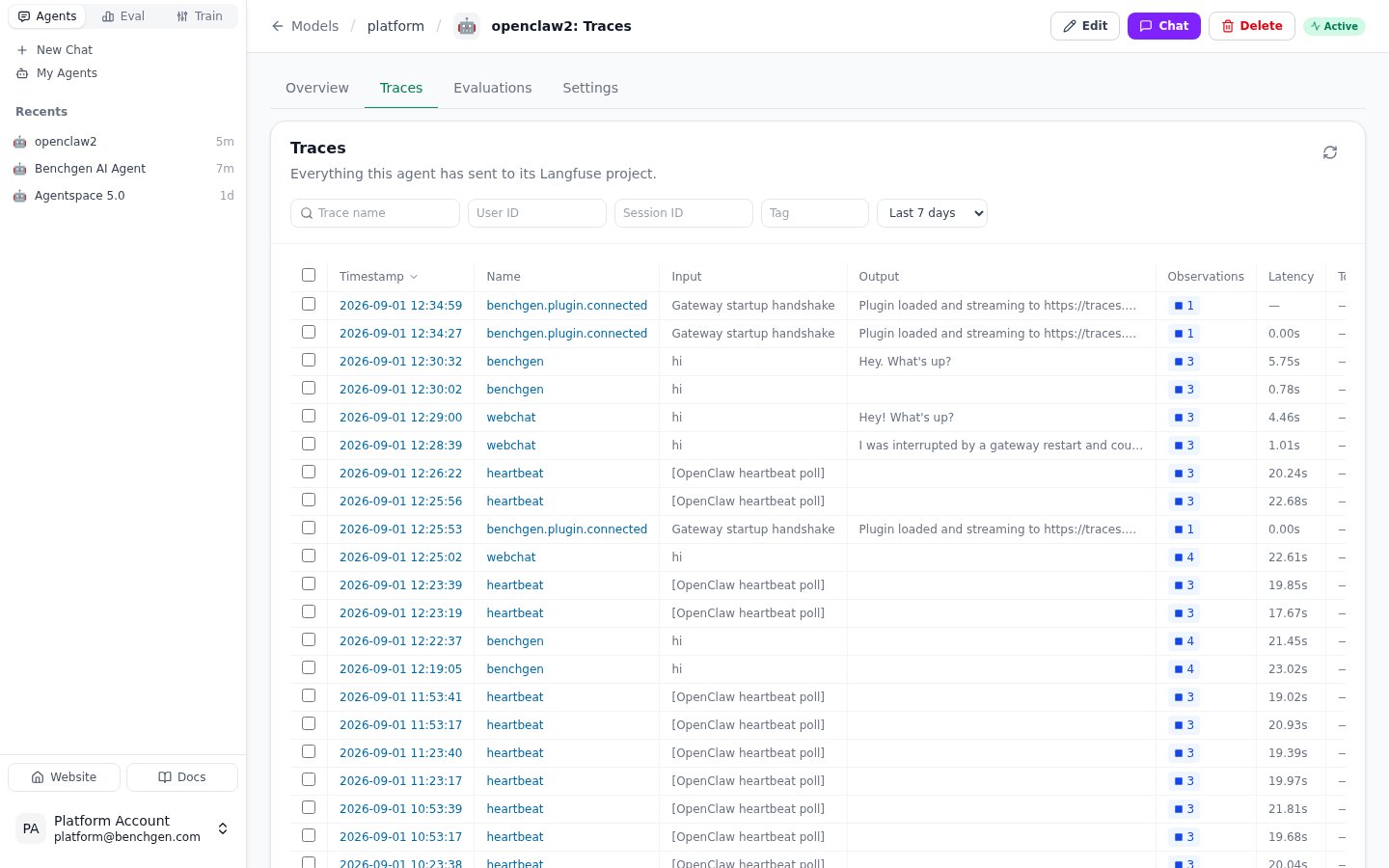

The Traces tab with chat turns, gateway handshakes and heartbeats

The Traces tab right after connecting: chat turns, gateway handshakes and heartbeats, with filters and a time range

What you will see named there: OpenClaw’s own periodic turns arrive as heartbeat (input [OpenClaw heartbeat poll]), turns that came from BenchGen (chat and benchmarks) as benchgen, and every trace carries an agent:<id> tag for the gateway agent that ran it (agent:main on a default gateway). Handshakes are tagged benchgen-setup; filter by that tag to isolate them, or to scan past them. Keys can be rotated from the Observability card (Rotate keys). Update the gateway’s config afterwards; the old pair stops working. A connected agent is registered as a model, so benchmarks run against it like against any other model: running one, watching its live log and reading the run’s traces task by task is on Benchmark an OpenClaw Agent; turning traces into datasets is on Datasets from an OpenClaw Agent.

Chat

Chat needs nothing beyond the plugin. On its first hello over the relay, BenchGen connects the agent for chat: the agent becomes available in BenchGen’s chat and gets registered for benchmarks. Until then the Runtime card reads Waiting for the gateway; from then on it shows Open chat.

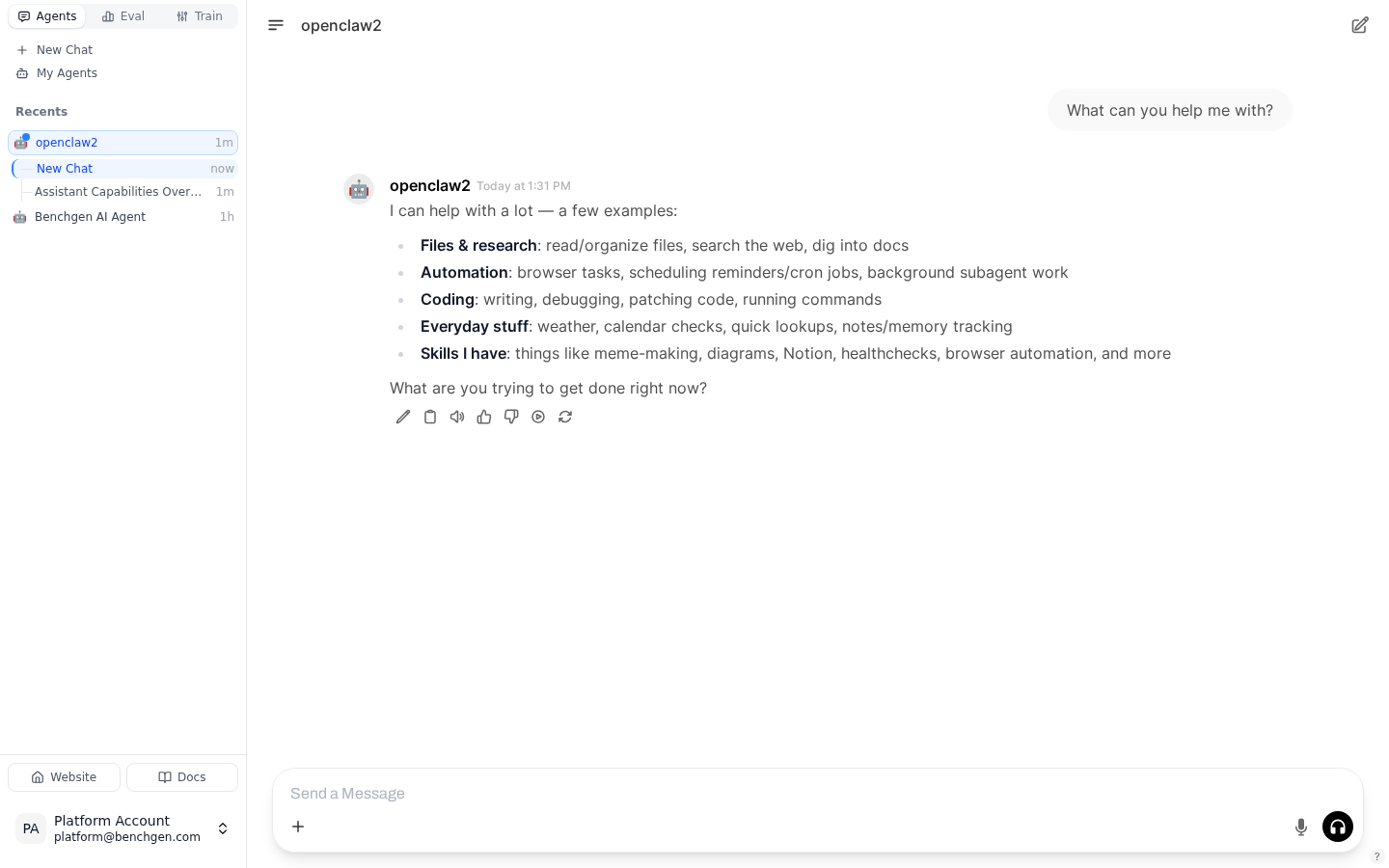

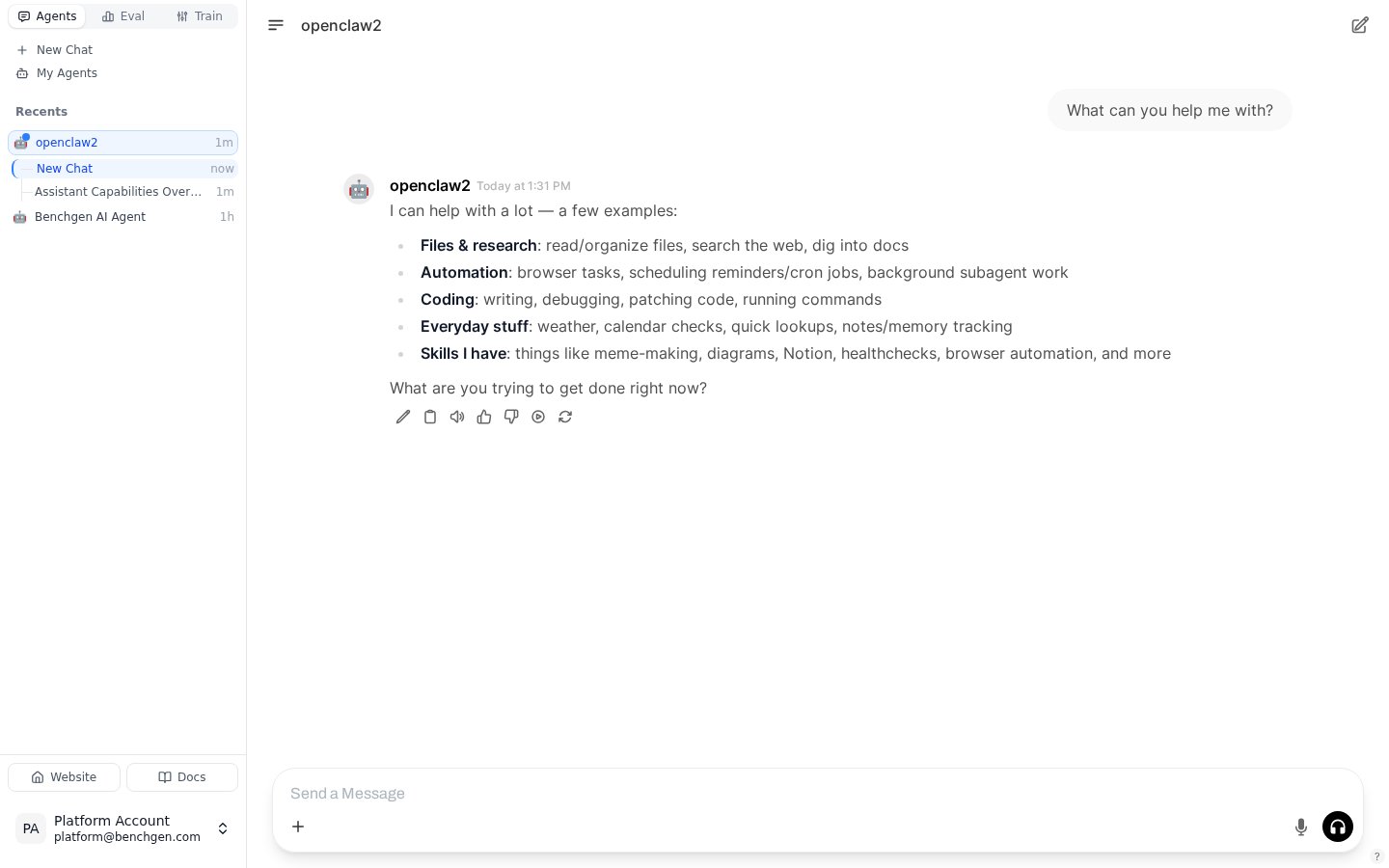

BenchGen chat with a connected OpenClaw agent answering a question

A conversation with a connected OpenClaw agent, opened straight from the Runtime card

Chat with an OpenClaw Agent

Sessions, streaming, switching chat off, and reconnecting.

Benchmark an OpenClaw Agent

Run it against an environment and read the trace.

What the install gives you

Everything above came from the one plugin install, and all of it is outbound from the gateway: traces go to the BenchGen endpoint, chat rides on a WebSocket the plugin keeps open, so the gateway can sit behind NAT, Docker, or a firewall. This is where each piece lives from now on: Continue with Benchmark an OpenClaw Agent, Datasets from an OpenClaw Agent and Chat with an OpenClaw Agent.

Troubleshooting

Three symptoms cover almost everything. No handshake trace after restarting. Read the gateway log and match the line:
Chat does not come up. The gateway log shows the relay’s close code:
Gateway won’t start after a config edit. Restore openclaw.json.bak through your hosting panel — an unknown key or wrong type blocks startup.
An agent saying setup worked isn’t proof. The handshake trace (benchgen.plugin.connected on the Traces tab) is the only confirmation that doesn’t depend on the agent’s word.

Upgrade the plugin

From the Control UI, send it as Run: openclaw plugins update benchgen. Restart the gateway afterwards to load the new code. plugins install refuses to overwrite a plugin that is already present; use update, or --force. Upgrading from 0.2.x: chat is on by default in 0.3.0. Run openclaw benchgen configure once to set the chat relay URL (or add chat.url), or set "chat": { "enabled": false } if you only want traces.
Last modified on September 4, 2026
